Cold Chisel

An one piece all steel chisel. A former metal worker's tool used for cutting steel. Now used for chipping and breaking concrete etc.

Bolster

A An one piece all steel chisel with wide blade used for cutting bricks etc.

The name is derived from a time when blacksmiths used to cut metal both hot and cold. Mostly metal gets cut with other tools these days, but this chisel can still be used for cutting steel when other tools are not available of they can not get into the correct position.

More than likely though it is used for any one of a number of jobs like chipping concrete, splitting bricks etc.

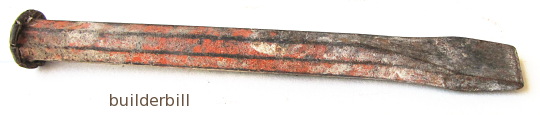

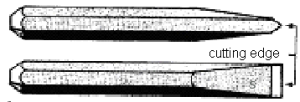

The sketch at the right shows how the chisel looks when it is new. That is the end that is hit by the hammer is beveled. After repeated use the end gets burred over as in the top photo. When the burr gets too severe there is a likelihood of chips flying off the end into the users face. For this reason the burrs should be ground off from time to time.

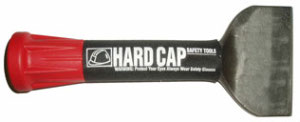

Also at the right is a brickies bolster. This is a similar tool that has a wider blade and it is used mainly for cutting bricks and pavers.

The favoured tool to use with these chisels is the lump hammer.

The side photos that to Wikipedia and contributors.
