Roof Basics

The construction of roofs is a varied subject and even in residential work, which is what I will be talking about here, it has changed so much over the last few years.

Care Of Your Roof

For obvious reasons any prudent homeowner should consider the condition of their roof from time to time.  Find roof faults before they get too bad and expensive to repair.
First off, don't go on a roof if you feel even a little bit apprehensive about doing so.  Get someone else do do it.  It is no big deal, some people are comfortable with roofs, some are not.

To get on most house roofs you will need a ladder. Like most things in DIY there are a few basics to know if you have never done it before.  On new ladders there are usually a lot of printed instructions, load ratings and disclaimers, but if you pick up a hire one, or a used one then they could be missing.  Take a look at my page on ladder handling and safety, and a bit on old ladders.

With any roof, always try to walk on the underlying supports, not in between them.  With on a corrugated iron roof that is where the nails or screws are.  With some types of roof sheeting it is hard to pick where the supports are.  For example metal sheeting that has hidden fastenings or slate.   In this case you should be able to feel where the firm none springy section is.   You could dent the sheeting, crack tiles etc. by walking on the unsupported sections.  This is far more important for shallower pitched roofs.

I always get up on my roof and check it out, at least once a year. I don't wait for water stains to appear on my ceilings. I also check it out every time I have had someone else working on it. Here are the sort of things I do and look for:-

• I trim off overhanging trees that are dropping leaves etc. on the roof. My roof is metal, so anything like leaf debris that helps to keep the roof moist longer than necessary is a potential rust promoter.
• Clean out the gutters and valleys.   Especially the valleys. Water backing up can get into the house.
• Because I have a metal roof I look for signs of rust, and fix them straight away.   A quick fix of any fault that could let water into your house is always good sense.
• Every two or three years I pressure clean the roof, because it is painted white, which reflects the heat far better if it is clean.  Same thing for my solar hot water heater panels, they are more efficient if they are clean.  The manufacturers recommend once a year washing, and more often in coastal areas or areas with high industrial pollutants.
• After I had plumbers fix a new solar hot water system on my old house, I had to fix two broken roof tiles.  (they fixed the two that they broke when drilling for the copper pipes) but left two others.
• Same deal when I had a cable TV dish fixed on my roof last year.  The young guy that fixed it told me he did about 7 installations a day.  That doesn't give him much time for cleaning the roof off.  I had to sweep off the swarf (metal scraps) from his drilling and screwing.  If they are left in place they seem to not only rust themselves, but they definitely help to rust through the protection on the underlying sheeting.

Modern roofing materials last for years and rarely give trouble, and it's a good job that they do, because with roofs it's usually a case of "out of sight, our of mind".  I can't cover all the various materials out there, but with any of them, I do know that a small amount of preventive maintenance now and again has got to be a good thing.

back to top

Roof Angles, Slope or Pitch

If you are starting from scratch you have to decide the pitch. In Australia and Europe we define the pitch in degrees. So a 5 degree pitch is pretty flat, and a 45 degree pitch is fairly steep.

In North America I believe you refer to the slope of the roof as the ratio of the rise over the run. Usually in inches with the run being 12" So an American drawing will note the slope as 4 in 12, that is 4 inches in 12 inches.

If I am designing a roof, the pitch determines what material I can and can't use for the sheeting.  For example if I want to use corrugated Iron sheeting, there is a minimum pitch specified by the manufacture, it may be 5deg.  Similarly with roof tiles it could be 15degrees. Check out the material specs before you go ahead.

If you live in a high rainfall area like me you need to be wary of almost flat roofs.  If you are subject to snowfall you you will have to make your roof steep enough to shed snow easily.

back to top

A Few Common Roof Types

Here is a standard hip roof on a rectangular plan. The four faces of the roof are almost always at the same pitch, which makes them symmetrical about the center line

Roof basics - A hip roof with overhanging eaves.

Hip roofs usually have a consistent level fascia, meaning that a gutter can be fitted all around.  The overhang of the roof at the wall is called the eaves. So we could typically say "the eaves are 900", meaning that the overhang of the roof at the eaves is 900.

If you are going to line your eaves, (cover them in, not leave the rafters showing) it is important to get the fascia parallel to the wall and the rafters cut off to the right size for whatever eaves lining material you use.

The eaves of a roof perform valuable functions apart from the looks.  They protect the walls from the weather.  From the rain and hence less maintenance, and importantly for us In Australia, from the sun.  Wide eaves help to keep the walls shaded and cool, reducing power use.  We have a building code that tells us we have to shade our windows in new construction, under certain conditions, to comply with energy efficiency needs.  Eaves often do just that.

back to top

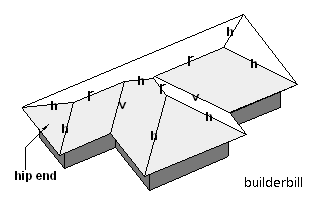

Roof basics - Hip roof, the extra faces produce valleys

Next is the same type again,a more complex hip roof set on a different plan shape.  Because the walls are set at different positions, there are a number of extra roof faces.  The level section at the top of the roof (not marked) is called the ridge.
Each ridge is central over the set of parallel walls below it.  The triangular faces of the roof are call the hip ends, and they are bounded by the hips (h) themselves.  The hips sit on an external corner of the building and rise to the ridge.  Where the building has an internal corner a valley (v) makes the join between the sloping surfaces.

With this type of roof, if there is ever going to be a problem with leaks, all other things being equal, it will be in the valley.  A build up of leaves can cause the valley to overflow.  The same leaves hold moisture for long periods and so accelerate rusting in the valley flashing, or valley gutter.  People are always told to keep their gutters clean, and rightly so, but a clean valley is far more important.

back to top

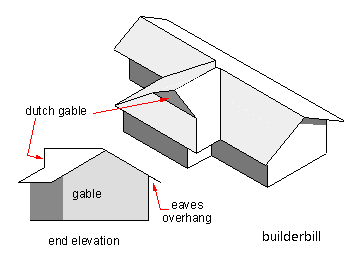

Roof basics - Gable roof with also a Dutch Gable

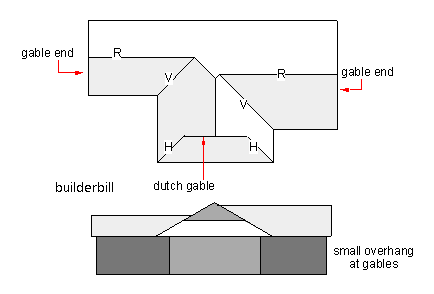

Here is the same wall plan again, with a different roof.  On the two opposite ends there are gables, and on the other one is a dutch gable, which is half gable end and half hip end.  The gable end as far as the roofer goes is the simplest form to build.  Offset that with the cost of the extra wall and it would be hard to say which type is cheaper to build.

Roof basics - Plan and elevation of the previous roof.

In standard construction, the overhang at the gable (say 450) is usually not as much as it can be at the eaves (900 to 1200 typical), so the gable overhang cannot provide the same protection to the walls and openings in them that a hip roof can.  The reason for this is that the rafters or truss members are heavier construction, and so can overhang more than the usually lighter roof purlins.

Dutch gables are as with many things a compromise, I quite like them and have done a few.  A bit more work than either a hip or a gable but I like the looks of them. They also give a convenient place to put in a louvred vent.

Gable roofs have one advantage over the hip, and it is a good one for us guys, but not necessarily important for the house owner.  More room and better access inside the roof space from one end to the other.

I was once building an addition to an existing house and the owner said that he was going into the roof space to run an electrical wire.  After half an hour or so I realised that we hadn't heard him for a while.  We found him semi conscious, overcome by the heat.  We had to carry/drag him about 12m to the manhole.  Needless to say we were very happy that he was at a gable end, and not wedged under a hip.

It is quite common to nail a board or a few boards, say 200 x 25, along the top of the ceiling joists or truss bottom chords to make it easier to move around in a roof space.  This is very small detail, and it is often overlooked, but just ask an electrician who spends a lot of time in roof spaces whether he thinks it's worth while.

back to top

Skillion Roof, Shed Roof

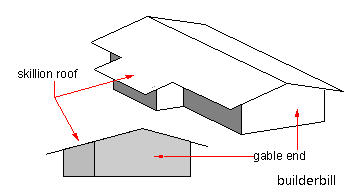

Here is an small room addition to a standard rectangular plan, and rather than try to keep the ceiling height the same as the rest of the house, which would make more work, we let the roof continue at the same pitch.  We call This a skillion roof. It is a very economical way of roofing over an odd part sticking out from the main building.

Roof basics - One version of a skillion roof.

This of course it has it's drawbacks.  It won't work too well if the pitch is very steep. The ceiling height gets too low.  I have seen this done often for rooms like bathrooms and kitchens. Say we are using a main ceiling height of 2700 (9ft) in the house, the bottom end of the skillion could only be say 2200.  That could be a bit of a no no, because our minimum ceiling height is 2400. But the good news is that in cases of say kitchens and bathrooms we are allowed to average the ceiling height.  The average between 2700 and 2200 is 2450, so we are OK in this example, if we line the ceiling on the slope.

The name skillion is more commonly used when referring to a plain roof with just a single slope, that is no ridge. I tend to call this a shed roof, with a skillion being either as drawn above, or any small separate addition to a main roof.

As with most terms in building there is a wide variety of regional differences in naming roof parts and types.

Roof basics - Modern skillion roofs.

Architects are again looking at the humble skillion, and giving it a modern look, that has more to do with style and design, rather than simplicity and low cost of traditional skillion or shed roofs.

back to top

Traditional Timber Pitched Roof

At the time I started out in the game it would be fairly safe to say that almost all house roofs were timber construction.
They were cut and pitched on site, and the roofing carpenter was king.

The carpenter did his own calculations from the basics of the design on the drawings.  He was given the floor plan, a few elevations and the pitch or angle of the roof.  He worked out the rest on site.

The timbers were heavy, which means costly, and the structural strength of the roof was only really as good as the guys that built it.  To pitch a large traditional style roof is also very labour intensive.  I have not seen any traditional style roofs done for years, but at the same time there are still small additions and extensions being built, particularly in remote locations, were a roof built up out of individual pieces of timber is still the most cost effective way to go.

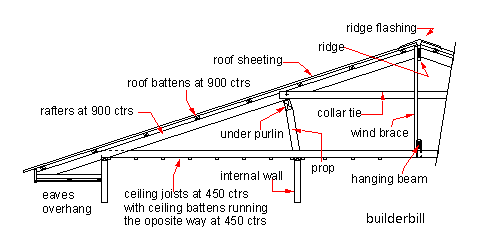

Roof basics - A sketch of a cross section of a typical carpenter framed roof.

In this case I have drawn something like we used to do before we had a truss plant in our town.  To build the same roof today, with all the extra work involved in getting it approved for cyclonic conditions would not be economical.  However I am getting visitors to this site from all over the world, so I have put it here in the hope that somebody finds it useful.

• The timber sizes are only fairly average, they are obviously governed by the spans involved.
• Mostly the roofs were just nailed together, with some joints strapped or clipped.
• The roof batten (75 x 50) and rafter (150 x 50) spacings are for sheet iron roofing.
• Under purlins are needed on longer spans to support the rafters.  Quite often the rafters are joined at the under purlins.  Roof trusses have been around for centuries, and large trusses would span a large roof, then the purlins would sit on them and in turn the rafters sit on the under purlins.  In the case above the under purlins are propped off internal walls.
• The collar ties join opposite rafters. Usually if the roof was deemed big enough for them, they were put onto every rafter.
• The hanging beams are packed up off the tops of the walls and support the ceiling joists, via timber droppers (50 x 50) nailed to both. They vary a lot in size, from 100 x 50 where the wall span is short, to 225 x 50 typically over living rooms.
• The wind brace (150 x 35) is used in gable roofs to stiffen them up in the direction at right angles to the view pictured.  They are fixed to the ridge and hanging beams.  They are hardly used in hip roofs, because the whole hip end is a brace.

Click here for more on roof framing, marking out rafters, marking out the ridge

back to top

Nail Plated Timber Trusses.

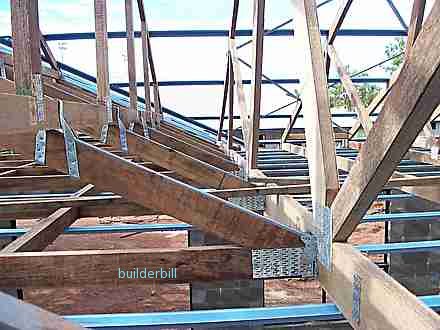

Roof basics - Multinail Trusses, the junction of two roofs at right angles. This is the truss version of a scotch valley.

About the late 1950's early 60's prefabricated roof trusses came onto the scene. The name that still sticks with me is Gang-Nail.  I may be wrong but I think they were the first company to build roof trusses that rely on a multi nail plate connector to mass produce cheap and easy roof trusses.

They are no longer the cutting edge of roof design, rather they are used for the thousands of simple cost effective house designs that are mainstay of the house construction industry.

Standard multinail trusses can not, normally be used for flat pitch roofs. Unless of course provision is made in the design, to provide the depth that the truss system uses.

Gang-nail trusses use lighter weight timber than traditional roofs, and get their strength from the fact that when assembled all the small bits of timber in them, become and act as one unit.  Because they are thin, they have no strength until they are braced in the position that the design calls for.

Made to order, usually at a franchise outlet of the main company.  Each roof is designed from the drawings that the builder or owner provides.  The complex calculations are done on proprietary computer programs.  There is no need for anyone on site to do any measuring of degrees or calculating lengths.

The end results are cheaper and more accurate roof frames that are quick to build.  Fixing with all the various brackets and clips etc. can easily be done by anyone who can swing a hammer and use a drill. With every set of trusses you get a diagram and list of fixing instructions.

Click here for more on truss fixing details, with plenty truss photographs.

Smaller local type companies are also now doing similar things in steel.  With the introduction of cheap mass produced roll formed steel sections for wall framing, it did not take long for the same materials to be used for lightweight roof trusses.

back to top

All Steel Roof Construction

Steel roofs are the way to go if you want something unusual or different.  In many cases they can also be very cost efficient, using standard steel roll formed purlin and batten sections.

Roof basics - Metal roofs

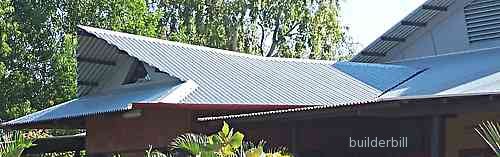

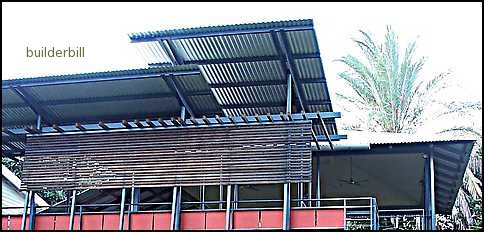

Above is a roof to a deck that we did a couple of years ago. There is a large 25 deg. square hip roof at the rear, with steel hips and tie beams, and with timber rafters and purlins. In the front are all steel sloping roofs with angle iron rafter beams and RHS steel purlins.

Roof basics - All steel pergola roof

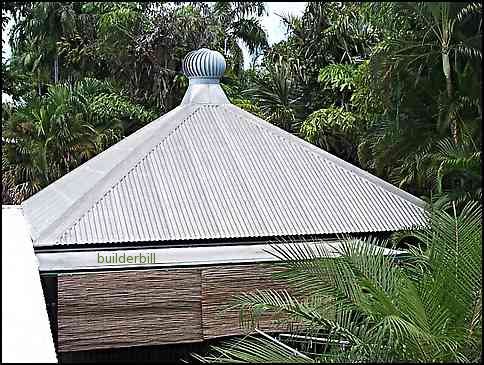

Here is an all steel roof that I built in my back yard about 10 years ago.  The thing on the top is a rotary roof ventilator, with a 600 mm dia opening. They are not normally so big, 300mm is normal.  The side facing is about 7m wide and the one leading away is about 8.5m.

Roof basics - All steel pergola roof.

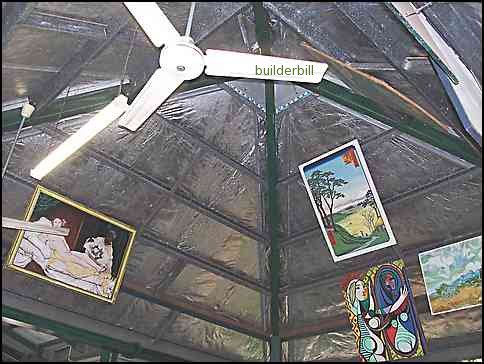

Here is a shot of the inside of it.  As you can see I have not got around to lining the inside of it yet.  (So much to do so little time).  Anyway at least you can see the structure.  The perimeter fascia purlins are C25025 I think from memory, The next up is a 150x100 RHS tie beam then the rest of the purlins are C150s.  I go into a bit of detail about setting out roofs like this on my roof calculations page, with rafter top cut, jack rafter side cut, hip and purlin side cuts.

Apart from the fact that steel can be curved, welded at odd angles and create unusual designs, steel has a couple of other advantages over timber.

• It is easier to comply with fireproofing regulations.
• I live in an area that has significant termite problems, and so fairly strict regulations regarding termite control are in place. In some instances these regs. may be waived if all steel is used.
• It can span greater distances cheaper than other materials. (I used to work for a timber engineering company that made huge laminated trusses and beams, so I know it can be done with timber, but I am talking about home building or extending here).

An ability to work with steel is required, but an owner builder can do a lot of work himself, and hire a tradesman welder for the technical bits.  If you can use a grinder and a chop saw, a hammer and a spanner, go for it!

Click here for some more on, steel and tropical roof design,

back to top

Calculations, Setting Out.

I guess that most of the current crop of carpenters would only have a less than perfect idea about rafter cuts and roof bevels, apart from a vague memory of a few hours of trade school instruction. They don't need it for fixing trusses.

Sorry about that, I am being a bit parochial here, as I know that an awful lot of traditionally pitched roofs are still being built in North America.

A few older guys will know a bit, and a lot of them use the steel square for setting out roofs. The steel square is still used a lot in North America I believe, and it is an excellent way of working out standard roofs.

But it does seem to me that roof calculation is passing out of the hands of carpenters and builders, and over to the truss manufacturers, and structural steel draftsmen.

On a modern steel roof with odd cuts and complex angles involved, the average small welding shop will want what we call shop drawings.  These are detailed drawings of all the steelwork involved in a job.  These are not cheap.   Sometimes they cost more than the actual main drawings of the job.

The average small builder or owner builder should be able to do their own calculations. It is very easy to do, definitely not rocket science.

First off work from basics.  Learn how to do it yourself.  That is learn to draw it out to scale.  Learn to recognise what is a flat surface, what is a right angle triangle etc.  Understanding roofing is all about geometry, that branch of maths that we all did at school and most of us thought we would never need again.  If you find my explanations a bit hard to understand, Google "geometry" and start from the beginning.  All you need are the basic drawing tools, a square, a straight edge, a sharp pencil and a steel ruler.  What to draw on? I like MDF cover sheets that I buy cheap.  I have also used bits of ply, old doors etc.  Set up in the shade on a couple of saw stools and you are on your way.

Don't rely on some website's fantastic roof angle calculator or buy a specific pocket roofing calculator or get a little book with all the magic secrets in it. Why not?

• Sooner or later it won't be there when you need it.
• You will be trusting someone else's calculations.  Look at the disclaimers these things have, they won't pay for any stuff ups.
• A lot of these so called aids, and here I include the steel square also, will take a bit of time to master.  Why not invest that same amount of time in learning how to do it for yourself?
• Once you learn the basics of roofing, by drawing it out, it is very simple then to progress on to doing quite complicated stuff that NONE of the gizmos can handle.
• Also, once you have the basics it is easy to see surfaces and triangle in other things that you may need to work out.
• Given the basics, you can easily check your work with a scientific calculator, or even drawing it out in a computer program.
• For example, if you come up with a rafter length from your sketch of 4550 and your calculator tells you 4553.256 you know you have it right, no niggling doubt about the calculator result.
• The same applies to angles. It is easy to finish up with a wrong angle on a calculator and get say 43 degrees instead of it's complimentary angle of 47 degrees. A quick sketch usually clears up any doubts.

click here for getting the main rafter, jack rafter, purlin, and hip cuts.

click here for the dihedral angle, or hip backing angle, for valley gutter and hip flashing.

back to top

Roof Cladding / Coverings

Here's a list of roof coverings that I have had experience with, along with some (biased) comments.  There are many others, like sheet metal products like lead, copper, stainless steel and zinc.  Some with the modern standing seam jointing methods.   To be honest I have never worked these, so I'll confine my comments to the ones that I have first hand experience of.

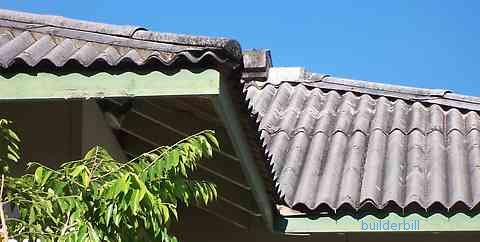

• Hardies "super six" corrugated FAC, Fibrous Asbestos Cement, the infamous "Fibro". If you still have a roof with this on it, I'd say get rid of it.  If you have to go on a roof like this, be extremely careful walking on it, especially when it is wet, as it is prone to deterioration with age and it is easy put put a leg through or worse.  Been there, done that!  More on my asbestos page.

Roof basics - Asbestos roof

• Slate. As an apprentice I have fixed broken or leaky roofing slates, but I can hardly remember the technique. One abiding memory is of starting to slide down a 45 deg slate roof, three floors up, and running madly sideways, gaining enough distance to leap 12ft onto a flat roof one floor below. No more slate roofs for me, thanks.
• Concrete / cement roof tiles.  Monier.  Min roof pitch 15 deg but steeper is better.
  • The company that supplies the tiles also fixes them.
  • An excellent roof, provided that everyone who works on the roof later does the right thing, they will never gives any trouble.
  • Unfortunately, plumbers, electricians and antennae installers tend to crack tiles.
  • I have found that replacing tiles is not that easy when the tiles are fixed with cyclonic clips. Replacing the ones that are just nailed is simple enough.
  • I usually try to fix any cracks with "Liquid Nails", not silicone.
  • Our first house had Monier tiles, and I found it hotter than other houses. The concrete soaks up the heat during the day and keeps it well into the night. The company has a line of light coloured tiles, white etc. that are better in this respect, but somehow white tiles look odd to me. When I think tiles, I think Terracotta.

Roof basics - Stone chips on metal tiles.  Almost impossible to fins one of these that is not damaged.

• "Decramastic".  Pitch over 15 deg. It consisted of pressed metal sheets covered in a bitumen compound with embedded stone chips.
  • For our conditions a really crappy roof covering. Most hot days, you cannot walk on the roof without the surface sliding under your feet. (The bitumen gets soft).
  • The batten set out has to be spot on.  No tolerance.
  • You must, repeat MUST walk on the battens.
  • I have seen a trail of bent and distorted tiles leading from the eaves, over the ridge to a new solar hot water system. The plumbers that fixed it had no idea of the roof surface, or didn't care.
• Sheet metal roofing.
  • Used to be galvanised iron.  It is now a material called "Zincalume" in Australia.
  • It does not have the same properties as Galvanised. It can not be soldered.
  • All joints that require a sealer must use one recommended by the manufacturer. Usually a neutral cure silicone like "Roof and Gutter Silicone" or any of the PU mastics.
  • DO NOT use ascetic cure silicone.
  • It is also not compatible with copper pipes and lead flashings, so isolate them.

If I was building for myself, I would not fail to use a metal sheet cladding on my roof.  The wide range of colours, profiles, roof pitches from 1 to 90 degrees, the ability to curve and twist, all in a competitive price range make it my choice.  (I said I was biased).   It all really depends on what is available and even acceptable in your area.

I have no experience at all with many of the roofing materials used in North America, although I once did a shingle job, that is popular over there. (Lost money on it, not the fault of the shingles though, the house was a geodesic dome, and It was for a mate, so I was doomed to lose money from the start).

Here is a site from a guy who knows more about materials in the US.

Here is another off site link Steel Metal Directory For metal sheeting vendors, supplies, and installers.

Click here for my main page on metal sheeting, which leads to a fixing page.

back to top

Hip Roofs Vs Gable Roofs and Skillion Roofs. Pros and Cons

Here is part of a message I have received (March 2007) from John H. in Queensland:-

Bill some builders are saying forget skillion roofs build hipped roofs for Qld especially with high rainfall and subtropical storms.  Or are they saying this because this is all their design program will do?  There is not much on the net about this.  Can you give us hte drum on pros and cons of skillion vs hipped roofs.

First off John, I will chuck in gable roofs with skillion roofs as they are fairly similar.  People also seem to use the term Skillion roof for what I call a shed roof, that is just one sloping surface, with the front and back walls of different height and the side walls sloping.  Which you could say is similar to half a gable roof. The same arguments pro and con apply.  So I'll give you my run down on both roofs, I guess some of this I have said before, but it is good to get it in one place.

• For me the most compelling reason for a hip roof, especially on a ground level house, is the level eaves, with a consistent overhang all around.  This simply means that it is easier to comply with the BCA requirements for shading of external walls etc. for energy efficiency.  The overhanging eaves usually mean that the walls comply without addition thermal insulation, and the doors and windows in them don't need awnings.
• If you have gable/skillion roofs, the overhang is usually less on the gable/side walls, (unless of course you are using steel purlins, which are great for skillions), and with the increased height over part of it the shading effect is also less, so you might have to build awnings or insulate the walls.  If there are windows and doors on the gable walls, most likely you will need awnings.  Depending on the orientation of course.
• Because of the sloping surfaces on all sides of a hip roof, they are in effect self bracing against side wind loads. So I think they are stronger than a gable roof. (All other things being equal).
• Gable roofs (with their square edges to the gables) create greater uplift forces in high wind (cyclonic) conditions than hip roofs. This fact alone would be the deciding factor in many parts of the world.
• Cost wise, gables or skillions may come out cheaper, but depending on the wall construction, when you add the extra cost of the walls they may not be too far in front.
• I would guess that most of the average houses in your area, apart form architect designed one offs, would use Multinail roof trusses, who do the design and the supply, so your builder really has no hand in the engineering of the roof design.
• On the subject of engineering design, most builders looking at shots like this, of the hold down bolts required for modern construction in cyclonic areas, probably think it is a bit extreme. Well.... I believe that with global weather changes etc. this type of construction may be "coming to your your area soon".

What is happening up here is that the developers are using a variety of roof design elements in any one single house.  They have hips, dutch gables and gables.  They use awnings over windows and doors.  They make feature gables over entrances etc.  They change the mix in various forms so that the outside appearance of very similar house plans is very different.

A lot of it is more about looks and marketing, than strength and weatherproofing.  Any design feature you want can be engineered and built.  It really depends on how much you have to spend.  If I was still building I would have to do the same, because that is what is selling now.  A plain box with gable ends is a thing of the past.

Check things out in your own area as different regions have particular preferences, but remember (in Australia) we are all governed by the requirements of the BCA, so styles are starting to change in response to this.
