Gunstock Style
A door style that reduces in width, typically wider at the bottom where the door may be paneled and then reducing at the top where it may be glazed

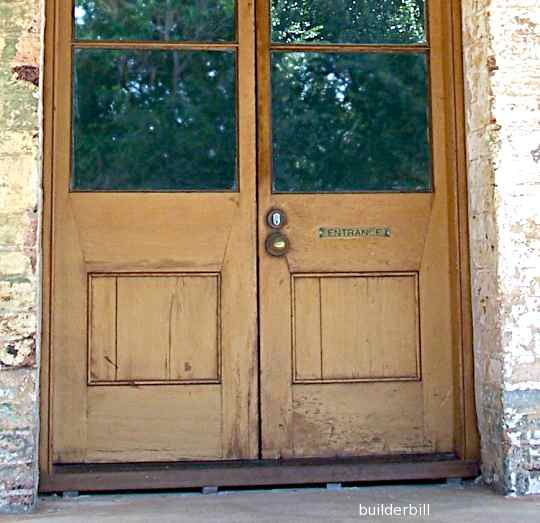

Above is a typical timber door that has wood panels below the Lock Rail or middle rail and glazed panels above it.

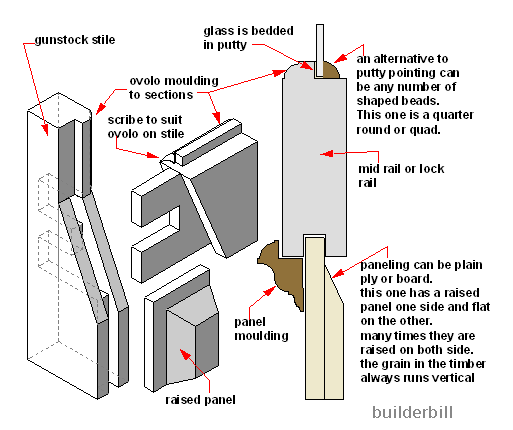

Below is a sketch of the mortise and tenon joint that does the connection at the mid rail and style.

mortise and tenon with raking shoulders

In this particular case the style reduces in width to give more light from the glass panels, hence the name "gunstock".
