Graphical Construction Glossary >> Doors. >> Door Hardware >> Lock Set

Lock Set
Budget priced packages that contain tubular locks or latches together with Handles
Key in Lever Locks
Budget priced packages that contain tubular locks or latches together with Lever Handles
Key in Knob Locks
Budget priced packages that contain tubular locks or latches together with Knobs
Backset Extension
An extra lock fitting that places the lock handle farther from the edge of the door.

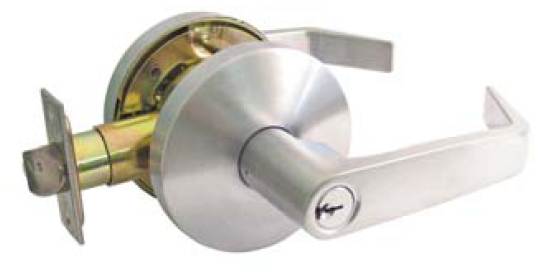

A key in lever lockset
Lock Set : A key in lever lockset
Image provided by Hafele Australia Pty. Ltd.

These locks have been around for a long time and for many years we simply referred to them as being Schlage Locks. That being the name of the manufacturer that first introduced them. (At least to Australia).

Probably the cheapest and easiest means of fixing a lock to a door. Locksets are used for external doors and internal. Every door in a house can have the same finish and design. They are mostly of a lock/latch design and they do not generally need to be locked by a key. Simply turning a snib or pressing a button on the inside and then closing the door after one leaves the room locks the door. A key is needed when entering from the outside. They are made for all the common functions which are"-

  • Entrance Doors. For doors with a lock on one side and a snib or turn button on the other side. Also used anywhere a keyed lock in needed, bedrooms, storerooms and even cupboads. It is not possible to lock oneself in a room, simply using the lever or the knob unlocks the door. This makes them all safe in respect of fire.
  • Privacy Sets. These are used on doors to bathrooms and toilets. They do not have a key to gain entry, but they have a safety function in that instead of a key cylinder on the outside they have a simple slotted button. This means that in the event of an emergency (someone collapsing inside) a coin or similar can be used to open the door.
  • Corridor Sets. These have no lock or button and they just perform as a door latch which can be opened from any side at any time.

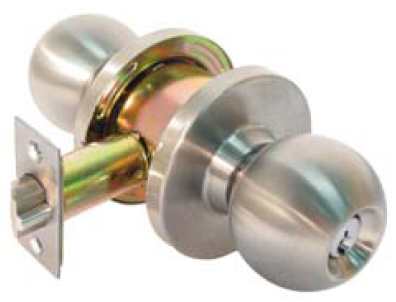

A key in knob set
Lock Set : A key in knob lockset
Image provided by Hafele Australia Pty. Ltd.

The two examples above show locks that have what is known as concealed fixing. That means that on the inside of the door the lock rose is a clip on fitting that covers the fixing screws.

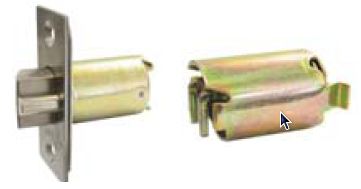

A latch bolt and a backset extension
Lock Set : A latch bolt and a backset extension
Image provided by Hafele Australia Pty. Ltd.

The standard backset for this type of lock is usually 60mm and another longer latchbolt is made for 70mm backset, but if you want to set the handle farther away from the door edge then it is easy to do by using a Backset Extension as seen above.
