Lattice Roof
A barrel or arched roof formed of many small sections fixed together to form the roof structure. They have been made out of RC concrete, timber, aluminium and steel.
Lamella Roof
Same as above.

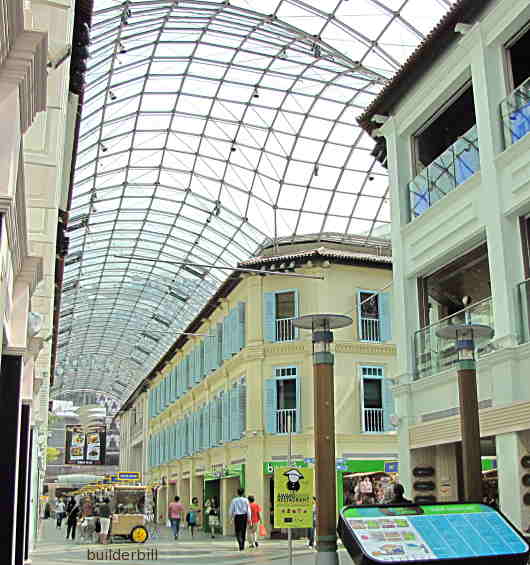

glass roof in Singapore

This type of roof was pioneered by Russian engineers almost 100 years ago, and the author has a 1950's carpentry text book with quite a few examples of timber bolted together lamella roofs.

Mainly these early roofs were restricted to regular arch forms with all the components being identical apart from treatment at the edges.

The Individual sections of the roof above have purpose made adjustable joints at the nodes. It is further stiffened by steel wires.

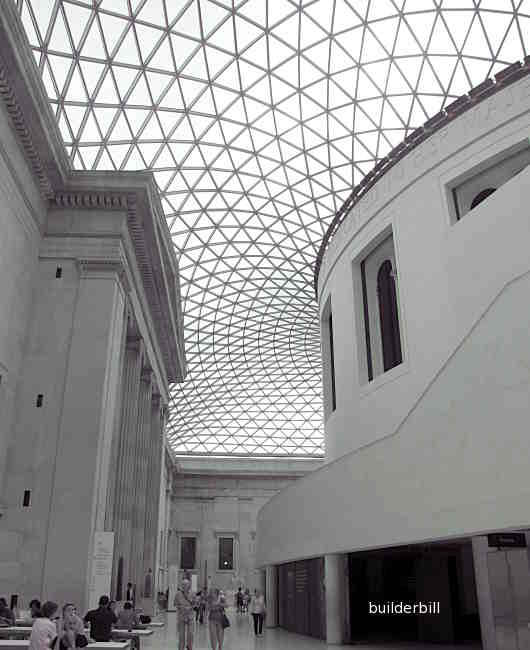

the roof of the great court of the British Museum

The lattice type roof as it is now mostly called did not really take off until the advent of powerful enough computers to simplify the calculations for the engineers.

The roof pictured here is the one over the Great Court at the British Museum in London, designed by Sir Basil Spence.

It is of steel construction and sits on a rectangular perimeter with a circular building in the center. This roof is based on the form of a torus (doughnut) stretched to a rectangle. A shape that would have been impossible to design a few years ago.

A node point for the steel lattic roof at the British Museum

Here is a close up of one of the joints at a node. The whole structure is welded steel.
